PLC Control Drywall Stud Roll Forming Machine CD UD Shape 5200*800*1300mm
1. Introduction of stud and track roll forming machine
The drywall stud and track roll forming machine was designed for the continuous and automatic production of metal c studs and u tracks which are applied for both exterior and partition walls in both individual and industrial buildings.
The Stud And Track Roll Forming Machine is used for the automatic manufacturing of metal c studs and u tracks continuously. Which is mainly for light gauge or lightweight steel building systems.
A drywall stud and track roll forming machine usually consists of manual decoiler, a feeding guide unit, a punching tool, a roll forming unit, a cutting unit, a transmission unit, a hydraulic unit, a control unit, and run-out tables.
Under PLC control system, this drywall stud and track roll forming machine fully automatically produces 4-6 metal c studs or u tracks out of galvanized steel of 0.6-1.2mm thickness from punching, roll forming and cutting.
2. Technical details of stud and track roll forming machine
| No. | Item | Parameter |
| 1 | Forming Speed | About 15-35m/min |
| 2 | Forming station | 10-12 stations |
| 3 | Cutting Type | Non-stop quickly hydraulic cutting. |
| 4 | Voltage | 380v, 50hz,3p or can be customized |
| 5 | Diameter of shaft | 45# steel with grinding process |
| 6 | Cutting Blade | Cr12Mov with hard treatment, HRC52-68 |
| 7 | Main frame system | Square box frame |
| 9 | Control System | Shanghai zhongChen frequency converter
Operation screen: kunlun |
| 10 | Electrical motor | Famous motor in China |
| 11 | Transmission | By gear drive |
| 12 | Language | Chinese-English operation version |
3. Main components of stud and track roll forming machine
| | Manual decoiler | 1 pc (Capacity:5 tons) |
| | Guiding Equipment | 1 set |
| | Roll Forming Equipment | 1 set |
| | Pressing equipment | 1 set |
| | Hydraulic Station | 1 pc |
| | PLC Control Panel | 1 pc |
| | Supporter Table | 1 set (Two pieces, 3m/piece) |
| | Tool Box | 1 pc |
4. Production Flows of stud and track roll forming machine
Uncoiling the sheet---Infeed guiding--Roll forming---Rectifying the straightness---Measure length---Cutting the panel--panels to the supporter (option: automatic stacker)
5. Advantages
· Germany COPRA software design
· 5 engineers with more than 20 years experience
· 30 professional technician
· 20 sets advanced CNC production lines on site
· Passionate Team
· Installation engineers can reach your factory within 6 days
· 1.5 years maintenance and whole life technical support

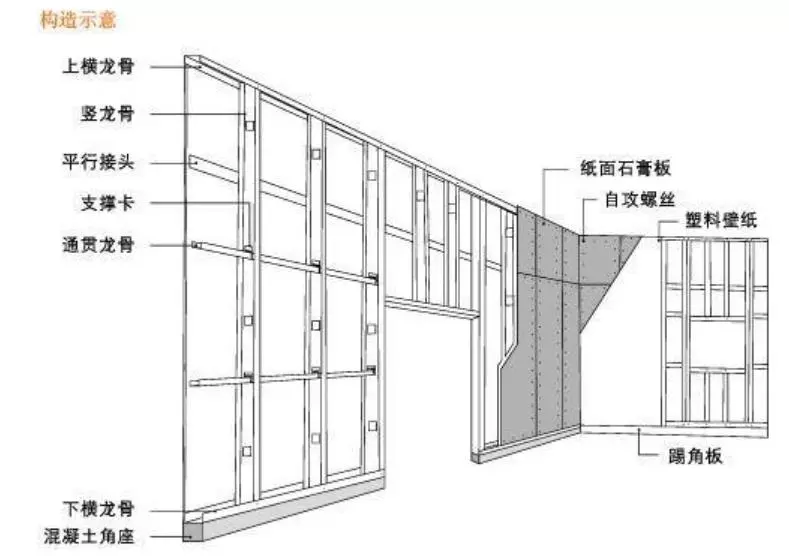

6. Application of stud and track roll forming machine
The advantage of final products C U Keel includes beautiful, classical appearance and grace taste. It is widely used in village, hotel, exhibition, vacation village, family construction and outdoor decorating.

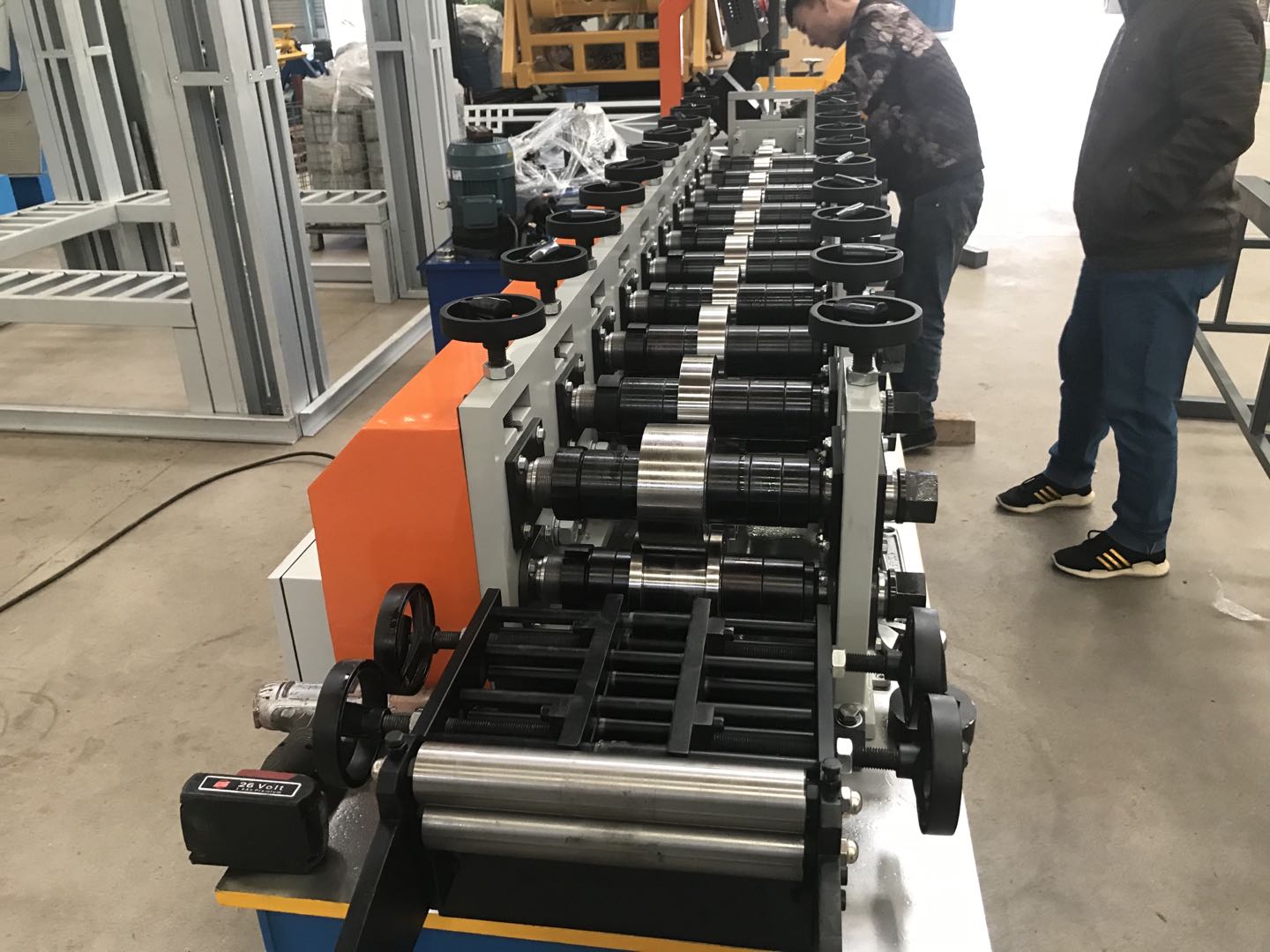

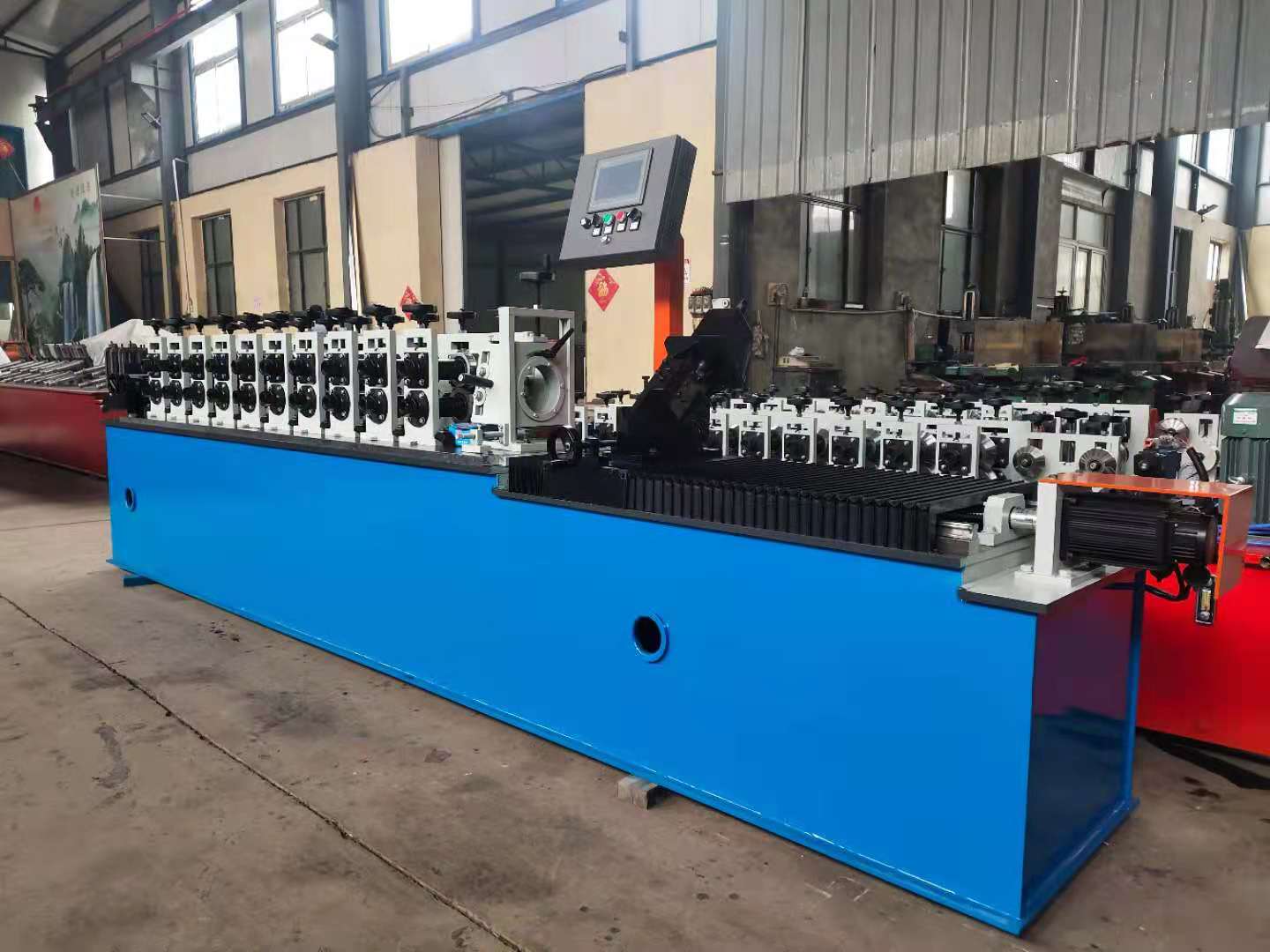

7. Product photo of of stud and track roll forming machine
8. Our service
1. Product quality control and delivery time is strictly controlled;
2. Direct manufacturing factory offering competitive price;
3. All the inquiries will be replied within 12 hours;
4. OEM & ODM service are available;
5. Providing first-class after-sales services to the customers.
9. Installation and training:
If buyers visit our factory and check the machine, we will teach you how to install and use the machine and also train your workers/technician face to face.
Without visiting,we will send you user manual and video to teach you to install and operate.
If buyer needs our technician to go to your local factory, our engineers can go to your place to make the installation
10. After-sell service
Guarantee period
The warranty period is 18 months starting from delivery. Because of the quality of equipment during guarantee period, we will provide the parts free of charges, which is in the conditions of correct operation. (Natural disasters or factors which can’t forced by human are excluded).
Foreign debugging
If you need, we will arrange our professional engineers to help you install and debug the machines well. Buyer should pay $100 per day
